中国地区AVHRR长时间序列积雪范围产品精度评估

doi:10.11873/j.issn.1004-0323.2018.6.0994

遥感技术与应用

积雪遥感专栏

中国地区AVHRR长时间序列积雪范围产品精度评估

王轩^1，2，郝晓华¹，王建^1，3，车涛¹，李弘毅¹，邵东航⁴

（1.中国科学院西北生态环境资源研究院，甘肃兰州 730000；
2.中国科学院大学，北京 100049；
3.江苏省地理信息资源开发与利用协同创新中心，江苏南京 210023；
4.电子科技大学，四川成都 611731）

Accuracy Evaluation of Long Time Series AVHRR Snow Cover Area Products in China

Wang Xuan^1，2，Hao Xiaohua¹，Wang Jian^1，3,Che Tao¹，Li Hongyi¹，Shao Donghang⁴

(1.Northwest Institute of Eco|Environment and Resources，Chinese Academy of Sciences，Lanzhou 730000，China;
2.University of Chinese Academy of Sciences，Beijing 100049，China;
3.Jiangsu Center for Collaborative Innovation in Geographical Information Resource Developmentand Application，Nanjing 210023，China;
4.University of Electronic Science and Technology of China，Chengdu 611731，China)

全文: PDF(7896 KB)

摘要：

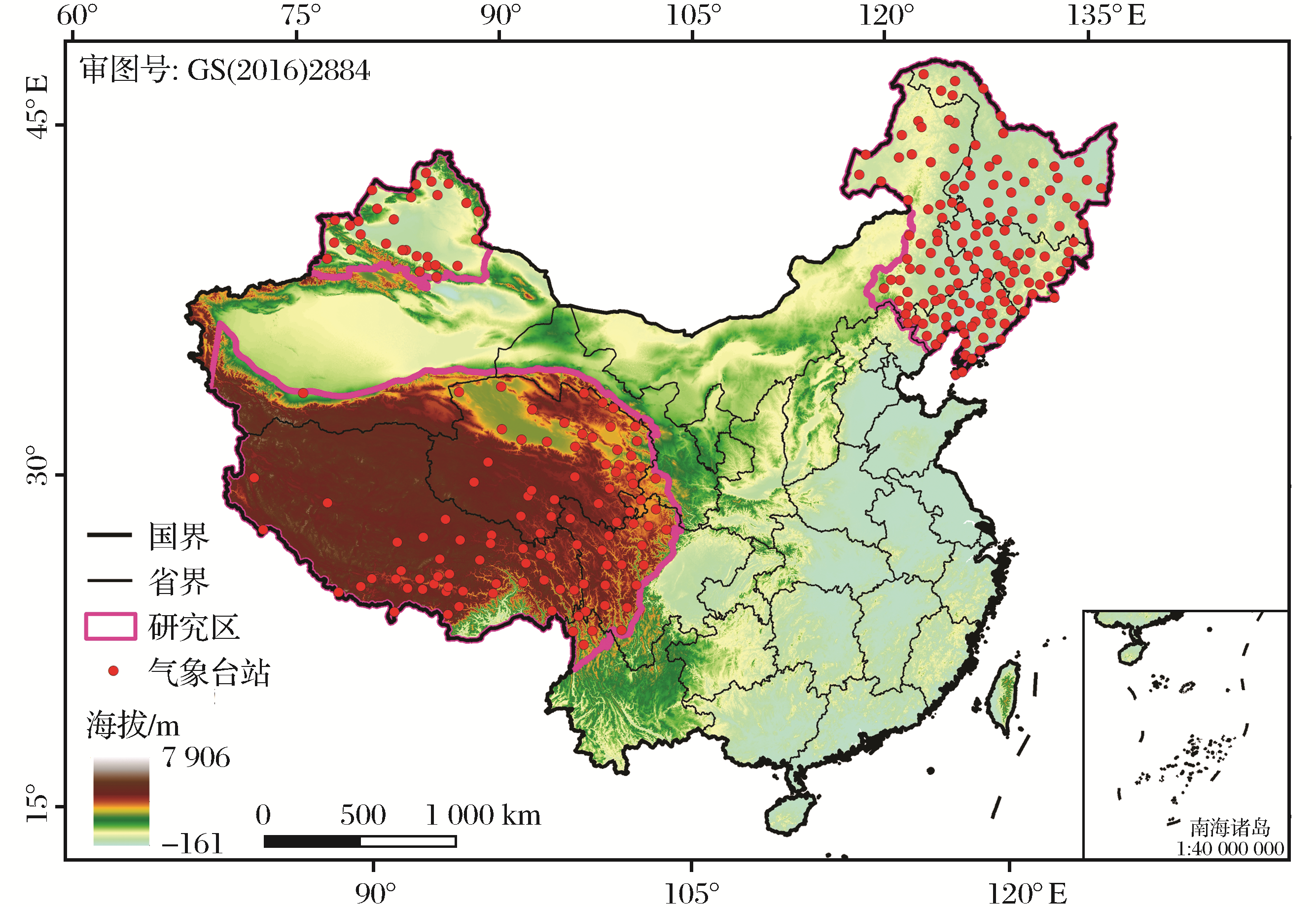

积雪是冰冻圈重要的组成部分，积雪面积在地表的积累和消融影响着水资源的平衡以及生态环境的变化，进而影响社会经济的发展。目前由日本宇航局发布的JASMES系列产品包含一套北半球自1978年以来长时间序列的AVHRR逐日积雪范围产品，可以作为气候和水文模型的重要输入，然而该产品在中国地区的精度尚未被评估。以高分辨率Landsat-5 TM数据和气象台站雪深观测数据两种手段通过构建误差矩阵和一致性检验方法来评价JASMES积雪范围产品在我国三大积雪区（北疆，东北和青藏高原）的总体精度。研究结果表明：使用Landsat-5 TM积雪面积二值图进行验证时，东北、北疆和青藏高原地区的总体精度分别为66.3%、69.3%和49.5%，积雪识别的漏分误差均较为严重，混合像元以及积雪消融时间过短严重地降低了青藏高原地区的总体评估精度；在积雪季逐月分析中，JASMES积雪产品由于地形的影响，青藏高原地区总体评估精度低于北疆和东北地区，消融过快的特性进一步降低了评估的总体精度。结合气象站点数据验证时，当雪深阈值为9 cm时，青藏高原、北疆和东北地区总体精度分别为94.2%、67.8%和77.8%，青藏高原地区对非雪像元的识别精度达到98.9%；随着站点积雪覆盖日数的增加，其总体精度均呈下降的趋势，漏分积雪情况较为严重，存在多分陆地，少分积雪的现象。综上所述，JASMES积雪产品在青藏高原、北疆和东北地区均存在漏分积雪比较严重的现象，青藏高原地区积雪漏分现象最为突出。

关键词： 积雪面积; JASMES; Landsat-5 TM ; 精度评估; 三大积雪区

Abstract:

Snow cover is an important part of the cryosphere.The accumulation and melting of snow cover on the surface of the earth affects the balance of water resources and the change of ecological environment，which further affects the development of social economy.Remote sensing is the most effective method to monitor the snow cover area.Currently，JASMES series released by the Japan Aerospace Exploration Agency contains a set of AVHRR daily snow cover products of the northern hemisphere for a long time since 1978，which can be used as an important input to climate and hydrological models.However，the accuracy of this product in China has not been evaluated.In this study，high resolution landsat|5 TM data and snow depth observation data of meteorological stations were used to evaluate the overall accuracy of JASMES snow cover products in three snow cover areas (North Xinjiang，Northeast China and Qinghai|Tibet plateau) in China by constructing error matrix and consistency test method.The results show that using Landsat 5 TM snow area of binary chart for validation，the overall accuracy of the Northeast China，North Xinjiang and the Qinghai|Tibet plateau region are 66.33%，69.27% and 66.33% respectively，the omission errors of snow are high.The mixed image elements and the short time of snow cover ablation seriously reduce the overall accuracy in Qinghai|Tibet plateau.In the analysis of snow cover season by month，the overall accuracy of JASMES snow cover products in Qinghai|Tibet plateau is lower than that of Northern Xinjiang and Northeast China due to the influence of topography，and the characteristics of rapid melting further reduce the overall accuracy of the assessment.Combined with meteorological station data validation，the overall accuracy of the Qinghai|Tibet plateau，Northern Xinjiang and Northeast China was 91.2%，59.0% and 72.5%，respectively.As the number of stations’ snow cover days increases，its overall accuracy tends to decline，and the Kappa coefficient is at a low value.The leakage error of snow cover identification is serious，and there is a phenomenon of more land and less snow cover.To sum up，JASMES snow products have serious snow leakage in the Qinghai|Tibet plateau，Northern Xinjiang and Northeast China，and the snow leakage in the Qinghai|Tibet plateau is the most prominent.

Key words: Accuracy Satellite precipitation data Evaluation strategy Evaluation method Scale

出版日期: 2019-01-29

ZTFLH:

TP 75

基金资助: 国家自然科学基金项目（41471291、91547210），科技基础资源调查专项（2017FY100502）资助。

作者简介: 王轩（1994-），男，湖北鄂州人，硕士研究生，主要从事积雪遥感数据集重建研究。Email：wangxuan@lzb.ac.cn。

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章

引用本文:

王轩, 郝晓华, 王建, 车涛, 李弘毅, 邵东航. 中国地区AVHRR长时间序列积雪范围产品精度评估[J]. 遥感技术与应用, 10.11873/j.issn.1004-0323.2018.6.0994.

Wang Xuan, Wang Jian, Che Tao, Li Hongyi, Shao Donghang. Accuracy Evaluation of Long Time Series AVHRR Snow Cover Area Products in China. Remote Sensing Technology and Application, 10.11873/j.issn.1004-0323.2018.6.0994.

链接本文:

http://www.rsta.ac.cn/CN/10.11873/j.issn.1004-0323.2018.6.0994 或 http://www.rsta.ac.cn/CN/Y0/V/I/994

［1］Vavrus S.The Role of Terrestrial Snow Cover in the Climate System[J].Climate Dynamics，2007，29(1)：73|88. [2]Cao Meisheng，Feng Xuezhi，Jin Dehong.Preliminary Research on Some Characteristics of the Spectral Reflection of Snow Cover[J].Journal of Glaciology and Geocryology，1984，6(3)：15|26.[曹梅盛，冯学智，金德洪，积雪若干光谱反射特征的初步研究[J].冰川冻土，1984，6(3)：15|26.] [3]Jeff D，Painter Thomas H.Multispectral and Hyperspectral Remote Sensing of Alpine Snow Properties[J].Annual Review of Earth and Planetary Sciences，2004，32(1)：465|494. [4]Qin D H，Liu S Y，Li P J.Snow Cover Distribution，Variability，and Response to Climate Change in Western China[J].Journal of Climate，2006，19(9)：1820|1833. [5][KG*4/5]Wang Jian，Che Tao，Li Zhen，et al.Investigation on Snow Characteristics and their Distribution in China[J].Advances in Earth Science，2018，33(1)：12|26.[王建，车涛，李震，等.中国积雪特性及分布调查[J].地球科学进展，2018，33(1)：12|26. [6]Cohen J，Entekhabi D.The influence of Eurasian Snow Cover on Northern Hemi|Sphere Climate Variability[J].Atmosphere，2001，39(1)：35|53. [7]Douville H，Royer J F.Sensitivity of the Asian Summer Monsoon to an Anomalous Eurasian Snow Cover Within the Météo|France GCM[J].Climate Dynamics，1996，12(7)：449|466. [8]Judah C.Snow Cover and Climate[J].Weather，1994，49：150|156. [9]Tekeli A E，Akyürek Z，Sorman A A，et al.Using MODIS Snow Cover Maps in Modeling Snowmelt Runoff Process in the Eastern Part of Turkey[J].Remote Sensing of Environment，2005，97(2)：216|230. [10]Rodell M，Houser P R.Updating a Land Surface Model with MODIS|Derived Snow Cover[J].Journal of Hydrometeorology，2004，5(6)：1064|1075. [11]Martinec J.Snowmelt|Runoff Model for Stream Flow Forecasts[J].Nordic Hydrology，1975，6：145|154. [12]Huang Xiaodong，Hao Xiaohua，Yang Yongshun，et al.Advances in Snow|cover Monitoring Using Optical Remote Sensing[J].Pratacultural Science，2012，(1)：35|43.[黄晓东，郝晓华，杨永顺，等光学积雪遥感研究进展[J].草业科学，2012，(1)：35|43.] [13]Matson M.NOAA Satellite Snow Cover Data[J].Global and Planetary Change，1991，4(1)：213|218. [14]Ramsay B H.The Interactive Multisensor Snow and Ice Mapping System[J].Hydrological Processes，1998，12：1537|1546. [15][KG*4/5]Hall D K，Riggs G A，Salomonson V V，et al.MODIS Snow|cover Products[J].Remote Sensing of Environment，2002，83(1)：181|194. [16]Hüsler F，Jonas T，Wunderle S，et al.Validation of a Modified Snow Cover Retrieval Algorithm from Historical 1 km AVHRR Data over the European Alps[J].Remote Sensing of Environment，2012，121：497|515. [17]Zhou H，Aizen E，Aizen V.Deriving Long Term Snow Cover Extent Dataset from AVHRR and MODIS Data：Central Asia Case Study[J].Remote Sensing of Environment，2013，136：146|162. [18]Wang S，Wang S，Yin H，et al.Spatio|temporal Patterns of Snow Cover Retrieved from NOAA|AVHRR LTDR：A Case Study in the Tibetan Plateau，China[J].International Journal of Digital Earth，2016，10(5)：504|521. [19]Masahiro H，Konosuke S，Kazufumi K，et al.A 38|year (1978~2015) Northern Hemisphere Daily Snow Cover Extent Product Derived Using Consistent Objective Criteria from Satellite|borne Optical Sensors[J].Remote Sensing of Environment，2017，191：402|418. [20]Che Tao，Li Xin.Spatial Distribution and Temporal Variation of Snow Water Resources in China during 1993|2002[J].Journal of Glaciology and Geocryology，2005，(1)：64|67.[车涛，李新，1993~2002年中国积雪水资源时空分布与变化特征[J].冰川冻土，2005，(1)：64|67.] [21]Zheng Zhaojun，Liu Yujie.Time Characteristics of Snow Cover in Major Snow Cover Areas in China During1980~2007[C]∥China Meteorological Society 2007 Annual Conference，Guangzhou，China，2007.[郑照军，刘玉洁，1980|2007年中国主要积雪区的积雪面积时间特征分析[C]∥中国气象学会2007年年会，中国广州，2007.] [22]Gao J，Williams M W，Fu X，et al.Spatiotemporal Distribution of Snow in Eastern Tibet and the Response to Climate Change[J].Remote Sensing of Environment，2012，121：1|9. [23]Ke Changqin，Li Peiji.Spatial and Temporal Characteristics of Snow Cover Over the Qinghai|Xizang Plateau[J].Acta Geographica Sinica，1998，(3)：19|25.[柯长青，李培基，青藏高原积雪分布与变化特征[J].地理学报，1998，(3)：19|25.] [24]Hall D K，Riggs G A，Salomonson V V.Development of Methods for Mapping Global Snow Cover Using Moderate Resolution Imaging Spectroradiometer Data[J].Remote Sensing of Environment，1995，54(2)：127|140. [25]Dozier J.Spectral Signature of Alpine Snow Cover from the Landsat Thematic Mapper[J].Remote Sensing of Environment，1989，28：9|22. [26][JP2]Olofsson P，Giles M F，Stehman S V，et al.Making better Use of Accuracy Data in Land Change Studies：Estimating Accuracy and Area and Quantifying Uncertainty Using Stratified Estimation[J].Remote Sensing of Environment，2013，129：122|131.[JP] [27]Wang Mingzu.Spatio|temporal Change of Snow Cover in the Tibetan Plateau and Its Relation to the Climate Factors in Recent 15 Years[D].Shanghai：East China Normal University，2016.[ 王明祖.青藏高原近15年积雪时空变化及其与气候因子关系研究[D].上海：华东师范大学，2016.] [28]Huang X D，Deng J，Wang W，et al.A Impact of Climate and Elevation on Snow Cover Using Integrated Remote Sensing Snow Products in Tibetan Plateau[J].Remote Sensing of Environment，2017，190：274|288
